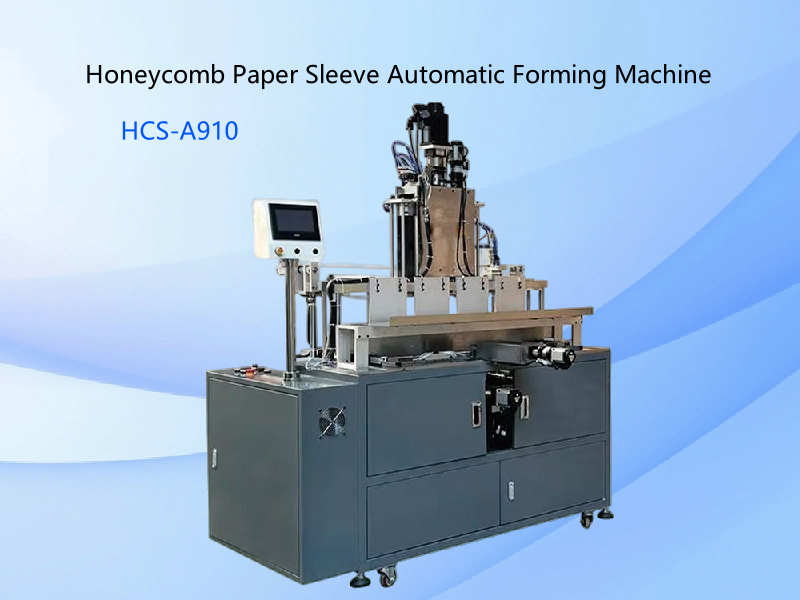

Honeycomb Paper Sleeve Automatic Forming Machine-- Automatic
Starting from honeycomb paper core to honeycomb paper sleeve forming short video
Product Introduction
Past foam EPE、 Traditional materials such as plastic corner protectors have long dominated the e-commerce and logistics packaging industry.
With increasingly strict environmental policies and brand awareness of "green packaging", these materials are gradually being replaced and phased out. Although traditional paper sleeves have environmental advantages, the low efficiency of old production processes, heavy reliance on manual labor, long molding time, and poor stability make it difficult to support large-scale industrial production.
The automatic forming machine for honeycomb paper covers achieves the formation of honeycomb covers through intelligent process operations on honeycomb paper cores of different lengths and sizes.
The device is easy to operate, and the human-machine interface adopts a touch screen, allowing users to clearly define parameters at a glance. Adopting PLC program control for precise paper stretching and forming system; Using milky white glue to ensure more environmentally friendly and stable adhesion; The machine can operate stably for a long time and continuously produce large quantities quickly. It can maintain stable precision production under high-intensity operation, and the production process of a honeycomb paper sleeve only takes 12 to 18 seconds.
Product features
*High quality sheet metal, alloy material design, using fine machining technology.
*Using PLC programming software for control, automated design, and high production efficiency.
*The human-machine interface adopts a touch screen, which is clear and visible at a glance.
*Fast molding speed: 13-18 seconds per production cycle.

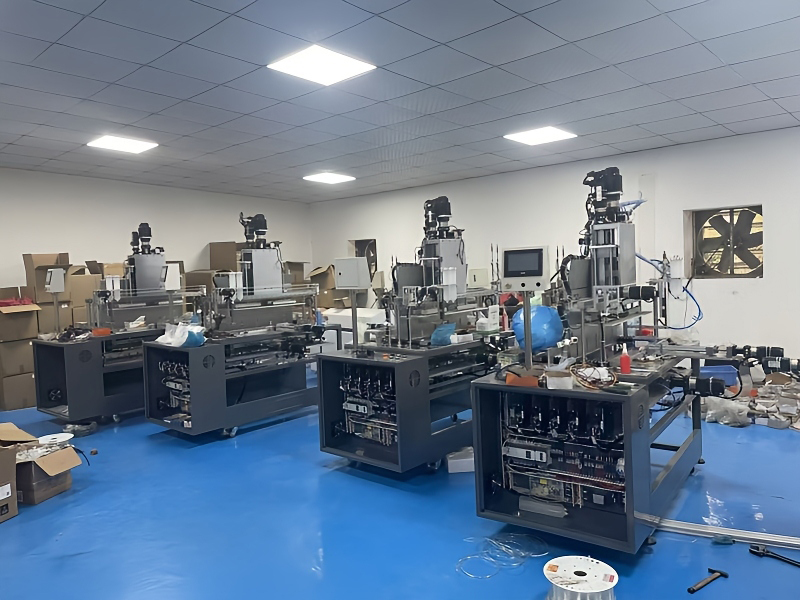

*One operator can manage multiple machines simultaneously.
*Capable of producing honeycomb paper covers of different sizes.
*Design a visual material storage system that can monitor material reserves in real-time and prevent production interruptions.
Application of Honeycomb Paper Cover Automatic Forming Machine
Suitable for e-commerce, factories, warehouses, logistics and express delivery places.

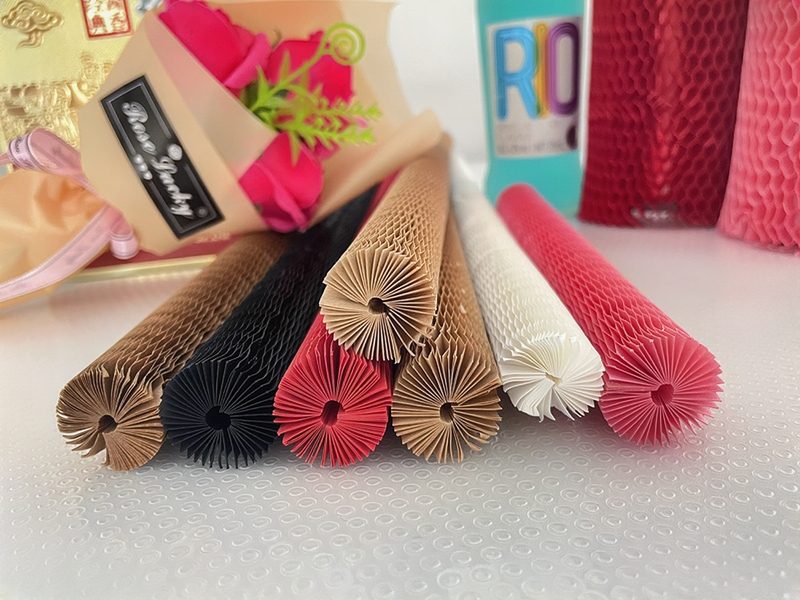

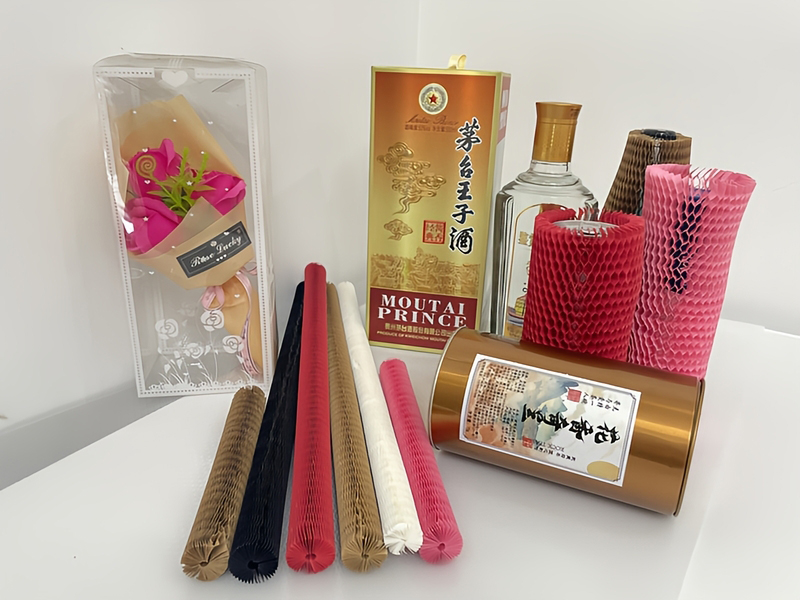

It can be used for various applications, such as ceramic bottle packaging, glass packaging, cosmetics, gift packaging, etc.

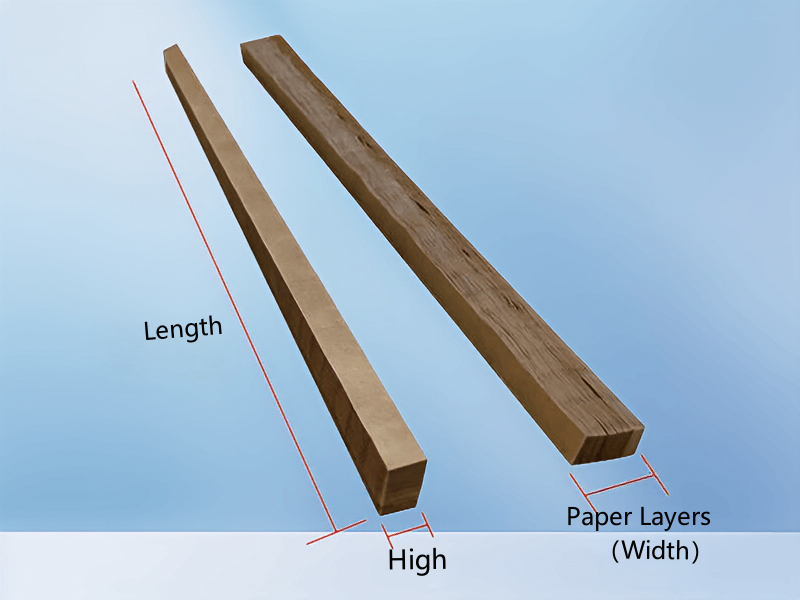

Product size
Technical Parameter
| Model | HCS-A910 |
| Can produce paper core height | 8-20mm |
| Can produce paper core width | 8-50mm |
| Canproduce paper core length | 50-910mm |
| Paper thickness | 50-150g |
| Canmake paper core eyelets | 15-40mm |
| Forming speed | 13-18S |
| Voltage： | AC100V/AC220V |
| Pressure | 0.6MPa |
| Power | 3KW |
| Machine Dimension（Open） | 186CM*186CM *210CM |
| Machine Dimension（Pack） | 186CM*186CM *210CM |
Product Details Display

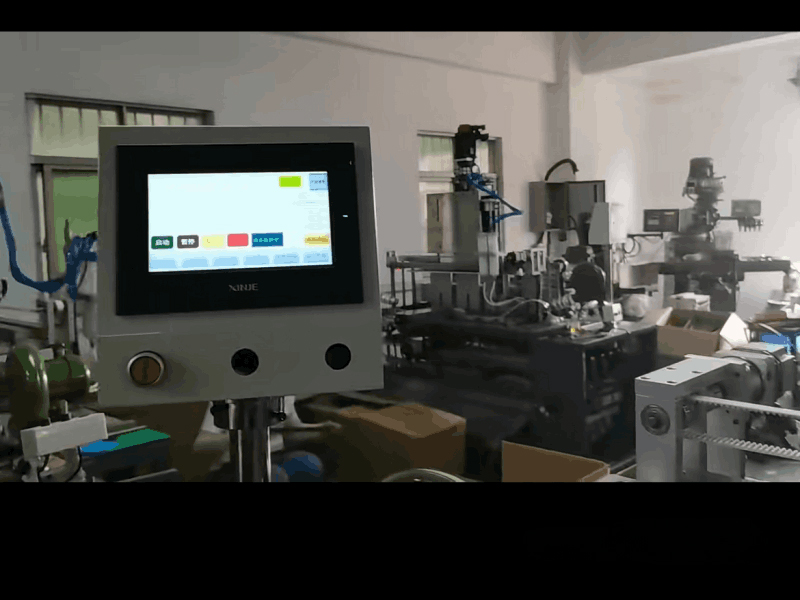

The human-machine interface adopts a touch screen, which is clear and visible at a glance.

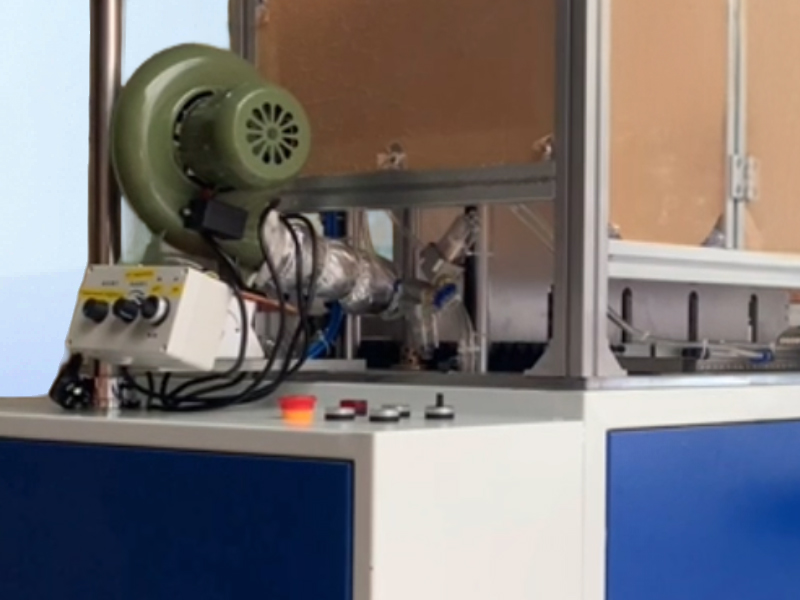

An independent hot air system ensures that the glue dries quickly, making the product more stable.

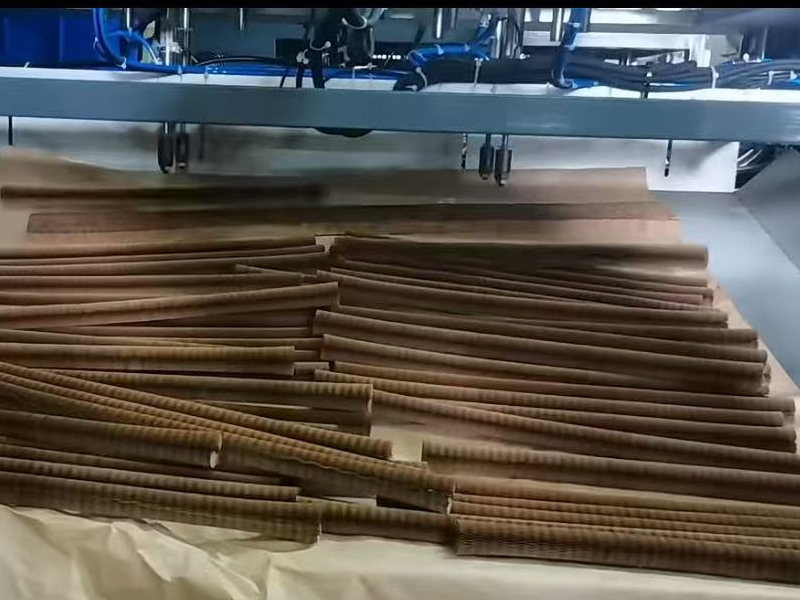

Multiple sets of different length sizes can be produced simultaneously

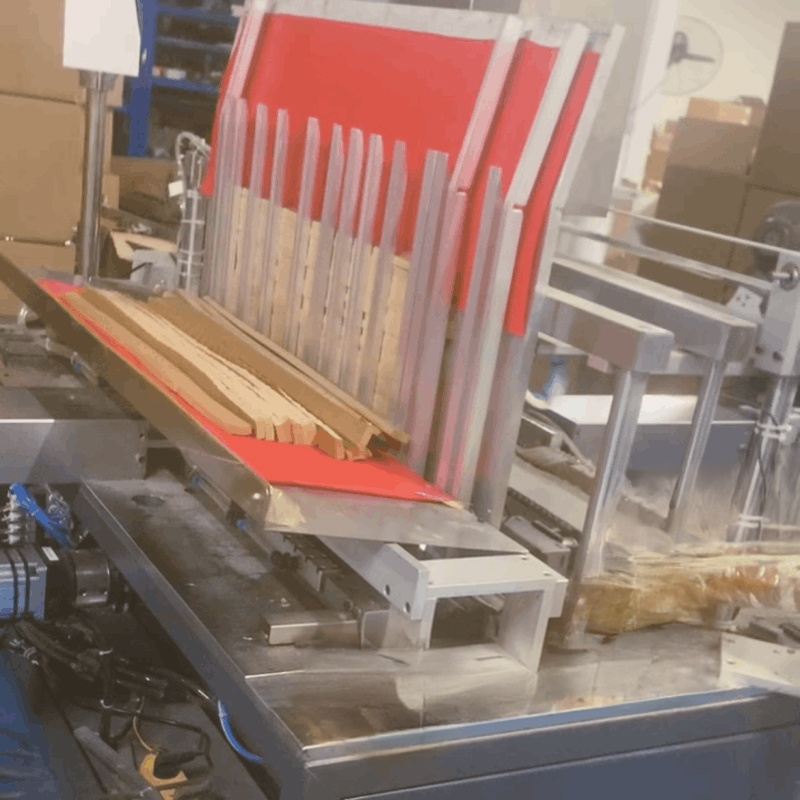

The large storage system can monitor the material reserve situation in real time and prevent production interruptions.
FAQ
1. Is there a minimum order quantity?
We can sell according to the customer's demand quantity
2. Is the price the same for different quantities?
We sell at tiered prices based on quantity
3. Can we customize the language of the human-computer interaction interface for customers?
We can customize the language of the touch screen interface for human-computer interaction according to customer needs
4. Can we customize design accessories for customers?
We can customize equipment peripheral accessories according to customer needs
